STL80N75F6 N-CHANNEL POWER MOSFET

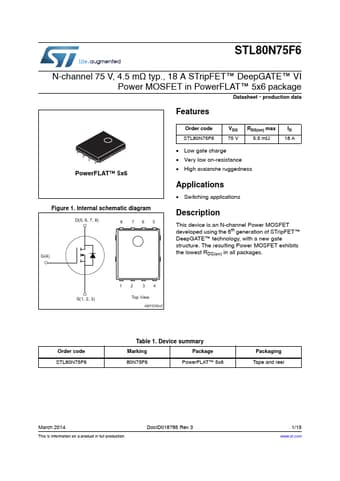

📥 Download Datasheet  Datasheet Preview Page 1

Description

STL80N75F6 N-channel 75 V, 4.5 mΩ typ., 18 A STripFET™ DeepGATE™ VI Power MOSFET in PowerFLAT™ 5x6 package Datasheet - production data .
This device is an N-channel Power MOSFET th developed using the 6 generation of STripFET™ DeepGATE™ technology, with a new gate structure.

📥 Download Datasheet

Preview of STL80N75F6 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 1 2 3 4 PowerFLAT™ 5x6 Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) Order code STL80N75F6 VDS 75 V RDS(on) max 5.5 mΩ
* Low gate charge
* Very low on-resistance
