* Order code VDS RDS(on) max. ID PTOT STL8N10F7 100 V 20 mΩ 8 A 2.9 W
* Among the lowest RDS(on) on the market
* Excellent FoM (figure of merit)
* Low Crss/Ciss ratio for EMI immunity
* High avalanche ruggedness Applications
* Switching applications Description This N-channel
STL8N10F7 Datasheet (518.25 KB)
STL8N10F7
518.25 KB
N-channel power mosfet.
STL8N10F7

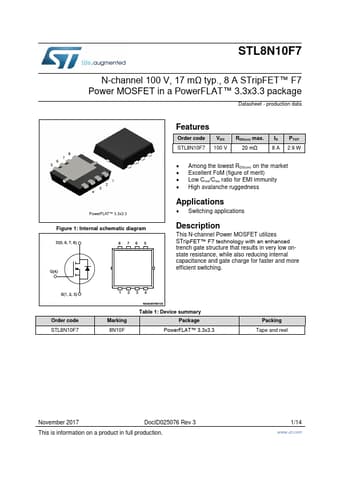

N-channel 100 V, 17 mΩ typ., 8 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 3.3x3.3 package
Datasheet - production data
Figure 1: Internal .
