STL8N65M2

N-channel Power MOSFET

STMicroelectronics

STL8N65M2 Features

* 1 2 3 4 PowerFLAT 5x6 HV Order code VDS RDS(on ) max. ID STL8N65M2 650 V 1.25 Ω 4A

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected D(5, 6, 7, 8) 8 76 5 Applications

* Switching a

STL8N65M2 General Description

S(1, 2, 3) 12 34 Top View AM15540v1 This device is an N-channel Power MOSFET developed using MDmesh M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most deman.

STL8N65M2 Datasheet (844.32 KB)

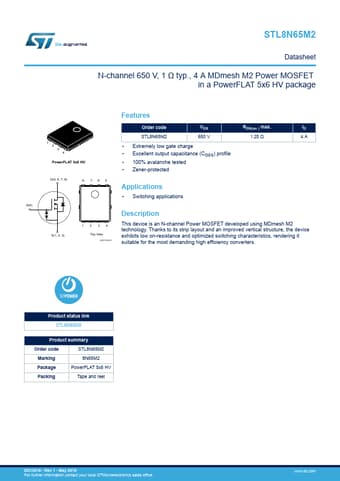

STL8N65M2 Datasheet Preview — Preview of STL8N65M2 PDF

Datasheet Details

Part number:

STL8N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

844.32 KB

Description:

N-channel power mosfet.
