STL8N80K5 Datasheet - STMicroelectronics

N-channel Power MOSFET

STL8N80K5 Features

* Order code STL8N80K5 VDS 800 V RDS(on)max. 0.95 Ω ID 4.5 A

* Outstanding RDS(on)

* area 1 2 3 4

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener protected PowerFLAT™ 5x6 VHV Applications Figure 1. Internal sc

STL8N80K5 General Description

This N-channel Zener-protected Power MOSFET is designed using ST's revolutionary avalancherugged very high voltage SuperMESH™ 5 technology, based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance, and ultra-low gate charge for applications which req.

STL8N80K5 Datasheet (1.37 MB)

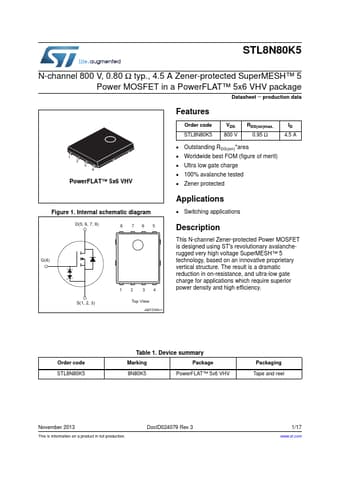

STL8N80K5 Datasheet Preview — Preview of STL8N80K5 PDF

Datasheet Details

Part number:

STL8N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

1.37 MB

Description:

N-channel power mosfet.
STL8N80K5 N-channel 800 V, 0.80 Ω typ., 4.5 A Zener-protected SuperMESH™ 5 Power MOSFET in a PowerFLAT™ 5x6 VHV package Datasheet production.
