STL8N6LF3 - N-CHANNEL POWER MOSFET

STL8N6LF3 Description

STL8N6LF3 Automotive-grade N-channel 60 V, 22.5 mΩ typ., 7.8 A STripFET™ F3 Power MOSFET in a PowerFLAT™ 5x6 package Datasheet - production data Fig.
This device is an N-channel Power MOSFET developed using STripFET™ F3 technology.

STL8N6LF3 Features

* Order code STL8N6LF3 VDS 60 V RDS(on) max. 30 mΩ ID 7.8 A
* AEC-Q101 qualified
* Logic level VGS(th)
* 175 °C maximum junction temperature
* 100% avalanche rated

📥 Download Datasheet

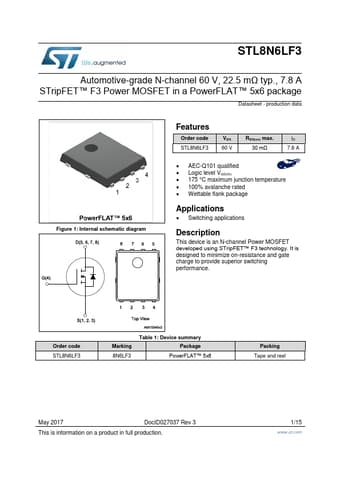

Preview of STL8N6LF3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
