STL80N4LLF3 Datasheet, Mosfet, ST Microelectronics

STL80N4LLF3 Features

  • Mosfet Type STL80N4LLF3 VDSS 40V RDS(on) <0.005Ω ID 20A (1) 1. When mounted on FR-4 board of 1 inch² , 2oz Cu, t<10 sec
  • Improved die-to-foot

PDF File Details

Part number:

STL80N4LLF3

Manufacturer:

STMicroelectronics ↗

File Size:

368.80kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This series of product utilizes the latest advanced design rules of ST’s proprietary STripFET™ Technology. The resulting Transistor i

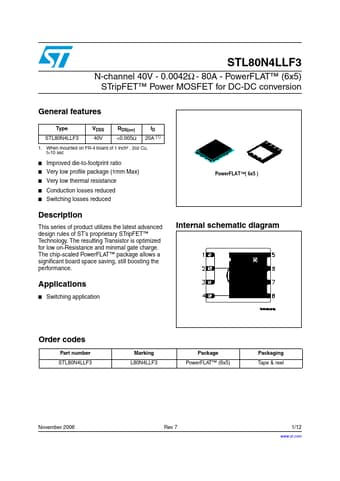

Datasheet Preview: STL80N4LLF3 📥 Download PDF (368.80kb)
Page 2 of STL80N4LLF3 Page 3 of STL80N4LLF3

STL80N4LLF3 Application

  • Applications
  • Switching application Order codes Part number STL80N4LLF3 Marking L80N4LLF3 Package PowerFLAT™ (6x5) Packaging Tape & reel

TAGS

STL80N4LLF3
N-CHANNEL
POWER
MOSFET
ST Microelectronics
