STL80NF3LL - N-CHANNEL POWER MOSFET

STL80NF3LL Description

www.DataSheet4U.com STL80NF3LL N-CHANNEL 30V - 0.0045Ω - 80A PowerFLAT™ ( 6X5 ) STripFET™ II MOSFET PRODUCT PREVIEW Table 1: General .
The STL80NF3LL utilizes the second generation of STMicroelectronics unique “Single Feature Size™” strip-based process.

STL80NF3LL Features

* TYPE STL80NF3LL
* Figure 1: Package RDS(on) < 0.0055 Ω ID 20 A (2) VDSS 30 V TYPICAL RDS(on) = 0.0045 Ω @ 10V IMPROVED DIE-TO-FOOTPRINT RATIO VERY LOW PROFILE PACKAGE (1mm MAX) VERY LOW THERMAL RESISTANCE CONDUCTION LOSSES REDUCED SWITCHING LOSSES REDUCED PowerFL

STL80NF3LL Applications

* HIGH-EFFICIENCY DC-DC CONVERTERS
* SYNCHRONOUS RECTIFICATION
* TOP VIEW Table 2: Order Codes Part Number STL80NF3LL Marking L80NF3LL Package PowerFLAT™ (6x5) Packaging TAPE & REEL Rev. 3 June 2005 This is a preliminary information on a new product now in development. Details are subjet to

📥 Download Datasheet

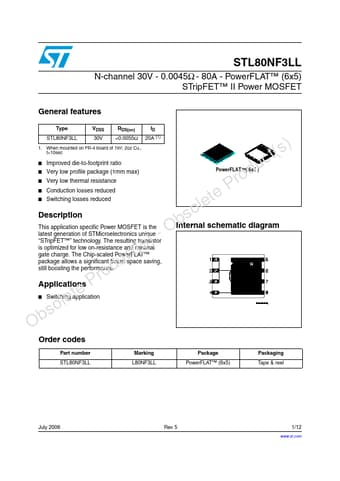

Preview of STL80NF3LL PDF
datasheet Preview Page 2 datasheet Preview Page 3
