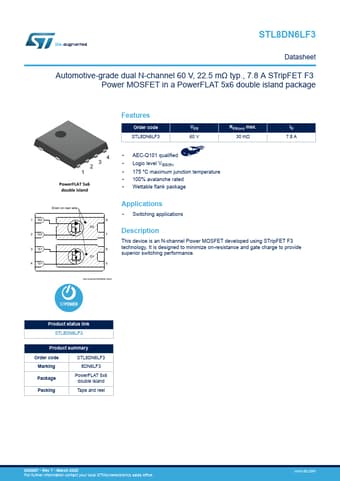

STL8DN6LF3 Datasheet, Mosfet, STMicroelectronics

STL8DN6LF3 Features

• Mosfet Order code STL8DN6LF3 VDS 60 V RDS(on) max. 30 mΩ ID 7.8 A 1 S2 Drain on rear side 2 G2 3 S1 4 G1 8 D2 7 6 D1 5
• AEC-Q101 qualified
• Logic level VGS(th)

PDF File Details

Part number:

STL8DN6LF3

Manufacturer:

STMicroelectronics ↗

File Size:

667.49kb

Download:

📄 Datasheet

Description:

Automotive-grade dual n-channel power mosfet. This device is an N-channel Power MOSFET developed using STripFET F3 technology. It is designed to minimize on-resistance and gate ch

STL8DN6LF3 Application

• Applications
• Switching applications Description This device is an N-channel Power MOSFET developed using STripFET F3 technology. It is des
