STP10P6F6 Datasheet, Mosfet, STMicroelectronics

STP10P6F6 Features

  • Mosfet Order codes STD10P6F6 STF10P6F6 STP10P6F6 STU10P6F6 VDS -60 V RDS(on) max 0.16 Ω
  • Very low on-resistance
  • Very low gate charge
  • High avalanche ruggedness

PDF File Details

Part number:

STP10P6F6

Manufacturer:

STMicroelectronics ↗

File Size:

1.13MB

Download:

📄 Datasheet

Description:

P-channel power mosfet. These devices are P-channel Power MOSFETs developed using the STripFET™ F6 technology, with a new trench gate structure. The resultin

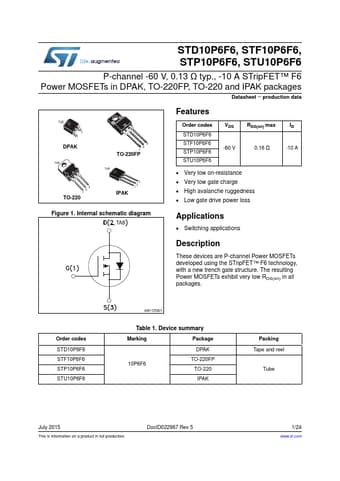

Datasheet Preview: STP10P6F6 📥 Download PDF (1.13MB)
Page 2 of STP10P6F6 Page 3 of STP10P6F6

STP10P6F6 Application

  • Applications
  • Switching applications Description These devices are P-channel Power MOSFETs developed using the STripFET™ F6 technology, wi
