STP33N10 N-CHANNEL POWER MOSFET

STP33N10 STP33N10FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP33N10 STP33N10FI VDSS 100 V 100 V R DS( on) < 0.06 Ω < 0.06 Ω ID 33 A 18 A s TYPICAL RDS(on) = 0.045 Ω s AVALANCHE RUGGED TECHNOLOGY s 100% AVALANCHE TESTED s REPETITIVE AVALANCHE DATA AT 100oC s LOW GATE CHARGE s HIGH CURRENT CAPABILITY s 175oC OPERATING TEMPERATURE s APPLICATION ORIENTED CHARACTERIZATION APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC .

STP33N10-STMicroelectronics.pdf

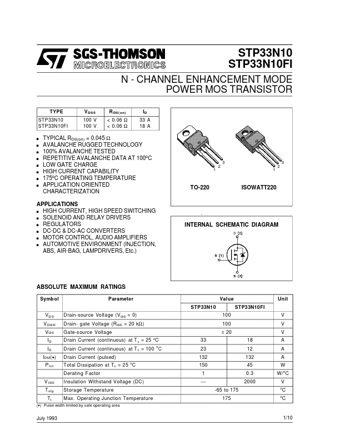

Preview of STP33N10 PDF
STP33N10 Datasheet Preview Page 2 STP33N10 Datasheet Preview Page 3

Datasheet Details

Part number:

STP33N10

Manufacturer:

STMicroelectronics ↗

File Size:

197.63 KB

Description:

N-channel power mosfet.
