* Order codes VDS @ TJmax RDS(on) max. ID STF33N60M2 STI33N60M2 STP33N60M2 650 V 0.125 Ω 26 A STW33N60M2
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* 100% avalanche tested
* Zener-protected Package TO-220FP I²PAK TO-220 TO-247
STP33N60M2 Datasheet (679.43 KB)
STP33N60M2
679.43 KB
N-channel power mosfet.

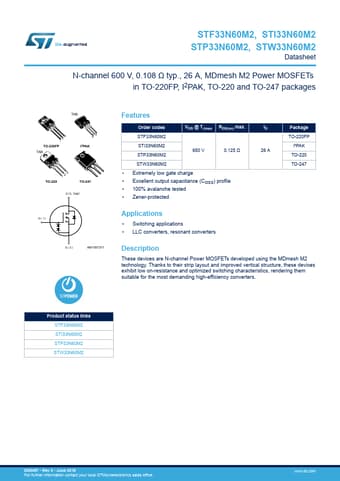

STF33N60M2, STI33N60M2 STP33N60M2, STW33N60M2
Datasheet
N-channel 600 V, 0.108 Ω typ., 26 A, MDmesh M2 Power MOSFETs in TO‑220FP, I2PAK, TO-220 and TO.
