STP33N65M2 N-channel Power MOSFET

STP33N65M2 Description

STB33N65M2, STF33N65M2, STP33N65M2, STI33N65M2 N-channel 650 V, 0.117 Ω typ., 24 A MDmesh™ M2 Power MOSFETs in D²PAK, TO-220FP, TO-220 and I²PAK packa.
These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology.

STP33N65M2 Features

* Order codes STB33N65M2 STF33N65M2 STP33N65M2 STI33N65M2 VDS RDS(on) max ID 650 V 0.14 Ω 24 A
* Extremely low gate charge
* Excellent output capacitance (Coss) profile
* 100% avalanche tested
* Zener-protected Figure 1. Internal schematic diagram , TAB Applicat

📥 Download Datasheet

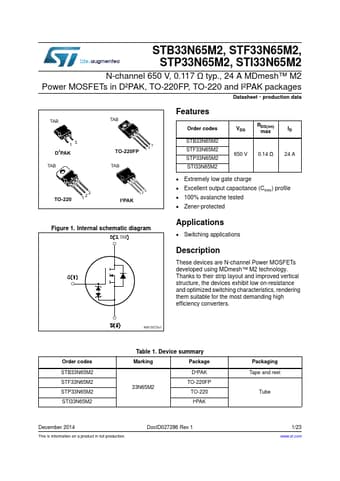

Preview of STP33N65M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
