STP38N65M5 - N-CHANNEL Power MOSFET

STMicroelectronics

The STP38N65M5 by STMicroelectronics is a N-CHANNEL Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STP38N65M5 N-CHANNEL Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STP38N65M5** N-CHANNEL Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STP38N65M5
Manufacturer	STMicroelectronics
File Size	1.60 MB
Description	N-CHANNEL Power MOSFET
Datasheet	STP38N65M5-STMicroelectronics.pdf
Additional preview pages of the STP38N65M5 datasheet.

STP38N65M5 Product details

Description

6 $0Y These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.The resulting product has extremely low onresistance, which is unmatched among siliconbased Power MOSFETs, making it especially suitable for applications which require superior power density and outstanding efficiency.Or

Features

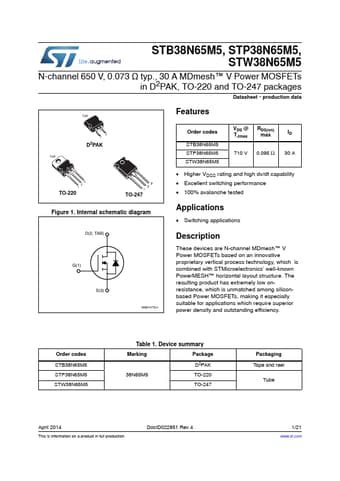

TAB 2 3 1 D2PAK TAB 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagram Order codes VDS @ TJmax RDS(on) max ID STB38N65M5 STP38N65M5 STW38N65M5 710 V 0.095 Ω 30 A.
Higher VDSS rating and high dv/dt capability.
Excellent switching performance.
100% avalanche tested.
