STP6NC80ZFP, STP6NC80Z N-CHANNEL MOSFET

STMicroelectronics

Description

STP6NC80Z - STP6NC80ZFP STB6NC80Z - STB6NC80Z-1 N-CHANNEL 800V - 1.5Ω - 5.4A TO-220/FP/D²PAK/I²PAK Zener-Protected PowerMESH™III MOSFET TYPE STP6NC80Z.
The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toba.

📥 Download Datasheet

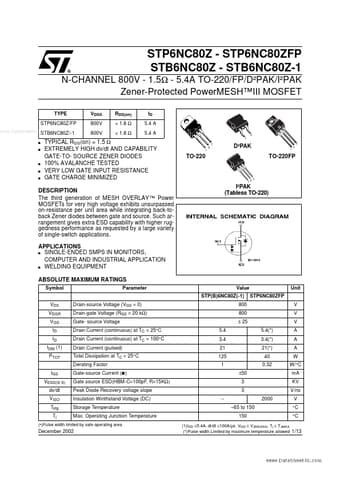

STP6NC80ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP6NC80ZFP, STP6NC80Z. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP6NC80ZFP, STP6NC80Z
Manufacturer: STMicroelectronics ↗
File Size: 442.23 KB
Datasheet: STP6NC80Z_STMicroelectronics.pdf
Description: N-CHANNEL MOSFET
Note: This datasheet PDF includes multiple part numbers: STP6NC80ZFP, STP6NC80Z.
Please refer to the document for exact specifications by model.

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

Applications

* APPLICATIONS SINGLE-ENDED SMPS IN MONITORS, COMPUTER AND INDUSTRIAL APPLICATION s WELDING EQUIPMENT s I²PAK (Tabless TO-220) ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (1) PTOT IGS VESD(G-S) dv/dt VISO Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) G
