STP6NS25 N-CHANNEL MOSFET

STP6NS25 Description

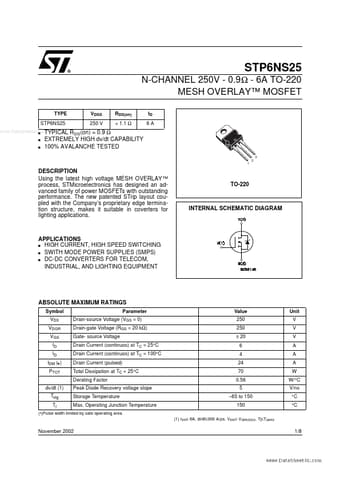

STP6NS25 N-CHANNEL 250V - 0.9Ω - 6A TO-220 MESH OVERLAY™ MOSFET TYPE STP6NS25 www.DataSheet4U.com s TYPICAL s s VDSS 250 V RDS(on) < 1.1 Ω ID 6A R.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performance.

STP6NS25 Applications

* TO-220 INTERNAL SCHEMATIC DIAGRAM APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-DC CONVERTERS FOR TELECOM, INDUSTRIAL, AND LIGHTING EQUIPMENT s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT dv/dt (1) Tstg Tj Parameter Drain-source Volt
