STPM801 - controller

STMicroelectronics

📥 Download Datasheet

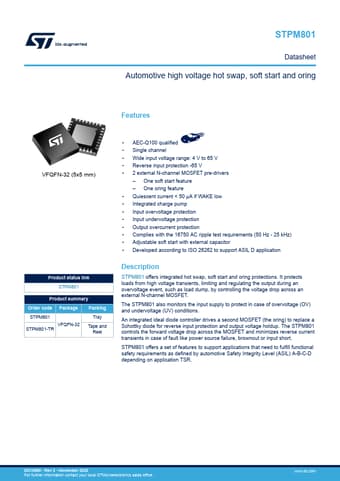

STPM801 Datasheet Preview — Preview of STPM801 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STPM801
Manufacturer	STMicroelectronics ↗
File Size	1.77 MB
Description	controller
Datasheet	STPM801-STMicroelectronics.pdf

STPM801 Product details

Description

STPM801 offers integrated hot swap, soft start and oring protections.

Features

VFQFN-32 (5x5 mm) Product status link STPM801 Product summary Order code Package Packing STPM801 VFQFN-32 STPM801-TR Tray Tape and Reel.
AEC-Q100 qualified.
Single channel.
Wide input voltage range: 4 V to 65 V.
Reverse input protection -65 V.
2 external N-channel MOSFET pre-drivers.
One soft start feature.
One oring feature.
Quiescent current < 50 μA if WAKE low.
Integrated charge pump.
Input overvo.
