STPP0100 - Laser pico projection specific image-processor

STMicroelectronics

📥 Download Datasheet

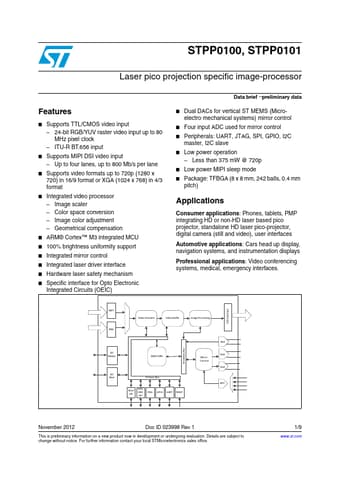

STPP0100 Datasheet Preview — Preview of STPP0100 PDF

Datasheet Details

Part number	STPP0100
Manufacturer	STMicroelectronics
File Size	93.85 KB
Description	Laser pico projection specific image-processor
Datasheet	STPP0100-STMicroelectronics.pdf

STPP0100 Product details

Description

1 Description STPP0100, STPP0101 The STPP0100 and STPP0101 chips are innovative, integrated video processor and application controllers designed for laser pico-projection systems and HD laser picoprojection systems.They support video inputs of up to XGA (1024 x 768) in 4/3 format or 720p HD (1280 x 720) in 16/9 format.The STPP0100 and STPP0101 ICs support a MIPI DSI video interface.They allow seamless integration into mobile equipment such as phones, tablets, digital still camera or video

Features

Supports TTL/CMOS video input.
24-bit RGB/YUV raster video input up to 80 MHz pixel clock.
ITU-R BT.656 input.
Supports MIPI DSI video input.
Up to four lanes, up to 800 Mb/s per lane.
Supports video formats up to 720p (1280 x 720) in 16/9 format or XGA (1024 x 768) in 4/3 format.
Integrated video processor.
Image scaler.
Color space conversion.
Image color adjustment.
Geometrical compensation.
ARM® Cortex™.
