STPS20LCD80C

Power Schottky rectifier

STPS20LCD80C Features

* High junction temperature capability

* Avalanche capability specified

* Insulated package: TO-220FPAB

* Insulating voltage = 2000 VRMS sine

* ECOPACK®2 compliant component for D²PAK, I²PAK, TO-220AB and TO-220FPAB on demand Description This device is a dual

STPS20LCD80C General Description

This device is a dual Schottky rectifier suited for high frequency switch mode power supply. Available in TO-220AB, TO-220FPAB, I2PAK and D2PAK, this device is intended to be used in LCD screens or adaptors providing such applications with good efficiency at both low and high load. Product status .

STPS20LCD80C Datasheet (589.81 KB)

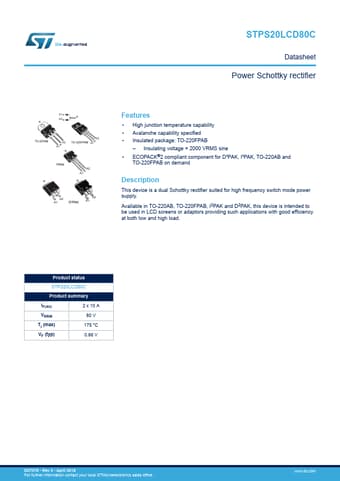

Preview of STPS20LCD80C PDF

Datasheet Details

Part number:

STPS20LCD80C

Manufacturer:

STMicroelectronics ↗

File Size:

589.81 KB

Description:

Power schottky rectifier.
