STPS20S100C

POWER SCHOTTKY RECTIFIER

STPS20S100C Features

* High junction temperature capability for converters located in confined enrironment

* Low leakage current at high temperature

* Low static and dynamic losses as a result of the Schottky barrier

* Avalanche specification Description Schottky barrier rectifier designed for high frequ

STPS20S100C General Description

Schottky barrier rectifier designed for high frequency miniature switched mode power supplies such as adaptators and on board dc/dc converters. The device is packaged in TO-220AB, I2PAK and TO-220FPAB. A1 K A2 K A2 A1 K TO-220AB STPS20S100CT A2 K A1 TO-220FPAB STPS20S100CFP K A2 K A1 I2PAK STP.

STPS20S100C Datasheet (128.20 KB)

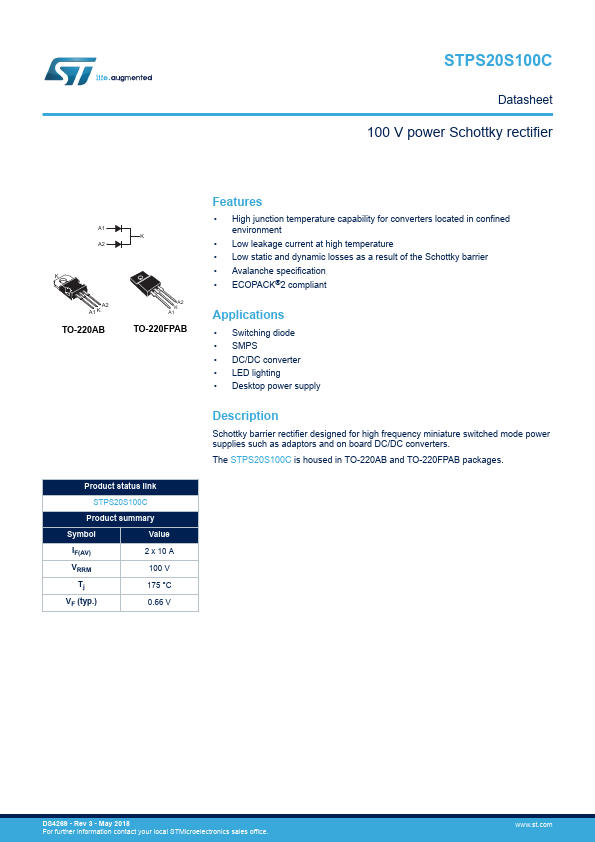

Preview of STPS20S100C PDF

Datasheet Details

Part number:

STPS20S100C

Manufacturer:

STMicroelectronics ↗

File Size:

128.20 KB

Description:

Power schottky rectifier.
