Description

STPS20SM100S www.datasheet4u.com Power Schottky rectifier A(1) K(2) A(3) K A A A A K K .
Single Schottky rectifier, suited for high frequency switch mode power supply.

📥 Download Datasheet

Preview of STPS20SM100S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* High current capability Avalanche rated Low forward voltage drop current High frequency operation Insulated package (TO-220FPAB):
* Insulation voltage 2000 V rms

Applications

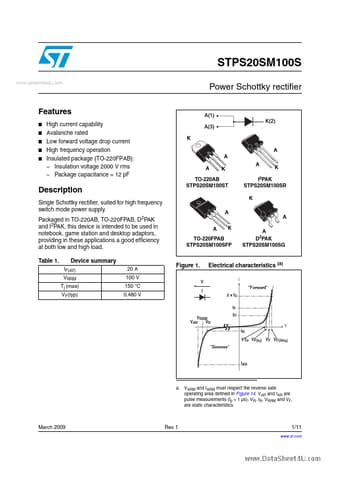

* a good efficiency at both low and high load. Table 1. Device summary IF(AV) VRRM Tj (max) VF(typ) 20 A 100 V 150 °C 0.480 V TO-220AB STPS20SM100ST I2PAK STPS20SM100SR K A A K D2PAK A A D2PAK STPS20SM100SG TO-220FPAB STPS20SM100SFP Figure 1. V I Electrical characteristics (a) I "Forward" 2 x
