STPS20S100CT 100V power Schottky rectifier

STPS20S100CT Description

STPS20S100C Datasheet 100 V power Schottky rectifier A1 K A2 K A1 K A2 TO-220AB A2 K A1 TO-220FPAB Product status link STPS20S100C Product summa.
Schottky barrier rectifier designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.

STPS20S100CT Features

* High junction temperature capability for converters located in confined environment
* Low leakage current at high temperature
* Low static and dynamic losses as a result of the Schottky barrier
* Avalanche specification

STPS20S100CT Applications

* Switching diode
* SMPS
* DC/DC converter
* LED lighting

📥 Download Datasheet

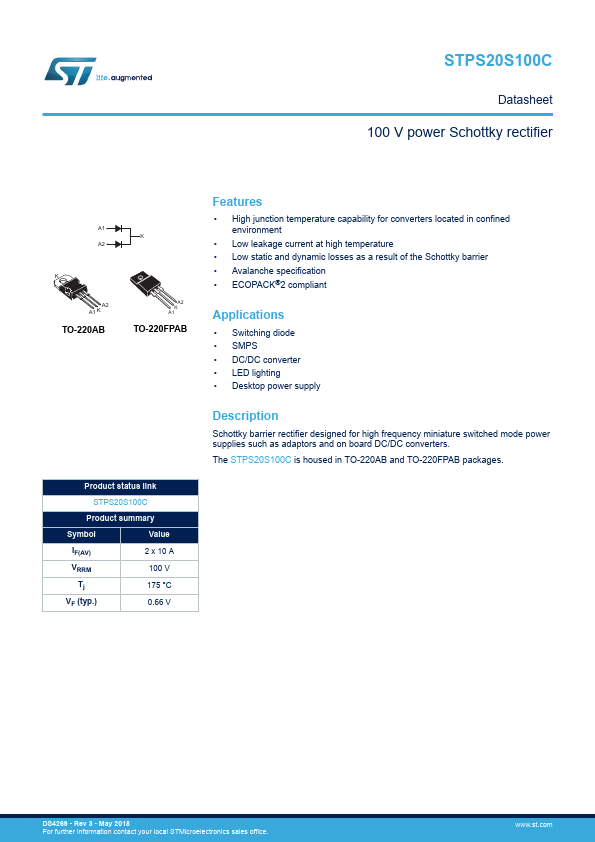

Preview of STPS20S100CT PDF

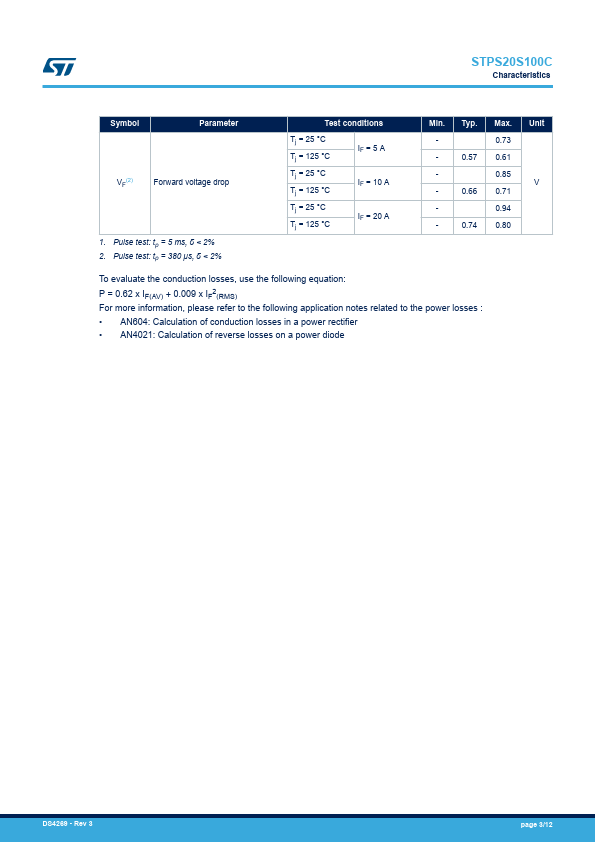

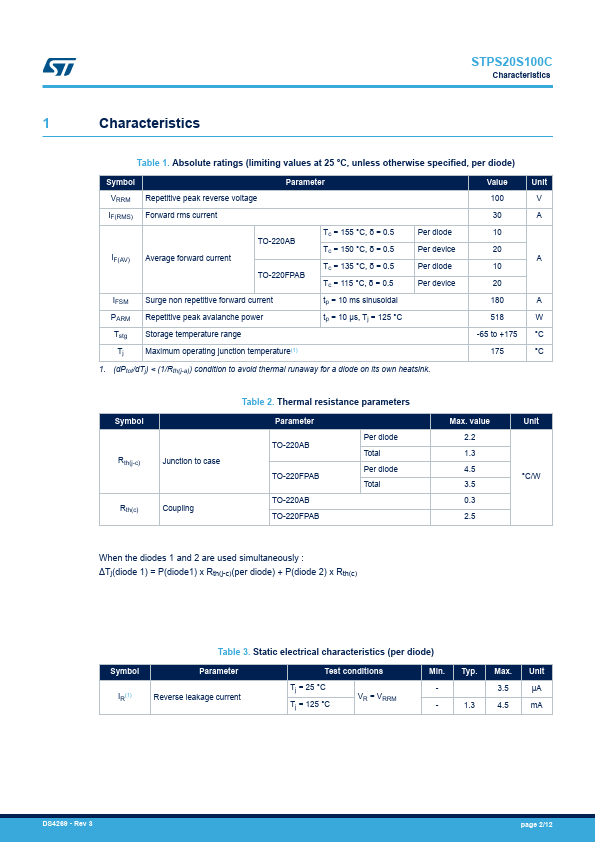

datasheet Preview Page 2 datasheet Preview Page 3
