STPS20S100CFP, STPS20S100CT 100V power Schottky rectifier

STPS20S100CFP Description

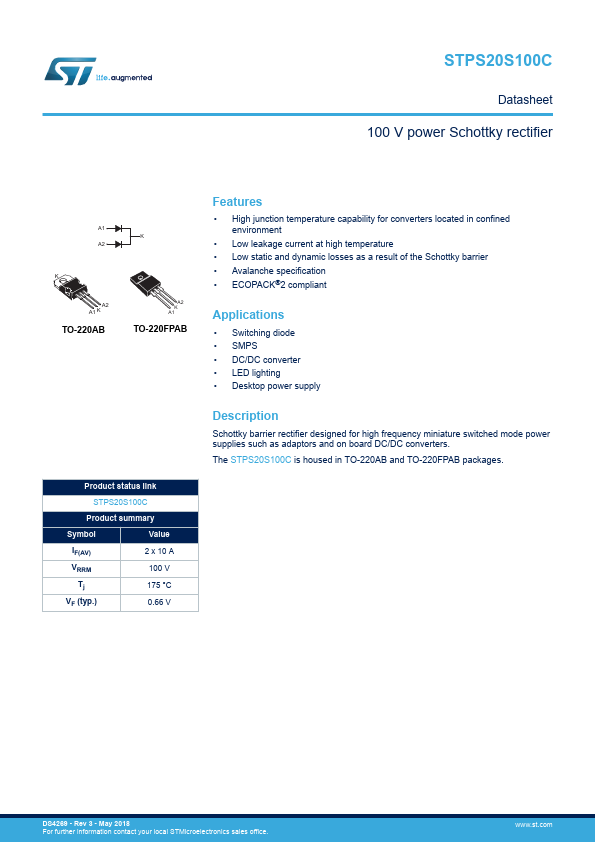

STPS20S100C Datasheet 100 V power Schottky rectifier A1 K A2 K A1 K A2 TO-220AB A2 K A1 TO-220FPAB Product status link STPS20S100C Product summa.
Schottky barrier rectifier designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.

STPS20S100CFP Features

* High junction temperature capability for converters located in confined environment
* Low leakage current at high temperature
* Low static and dynamic losses as a result of the Schottky barrier
* Avalanche specification

STPS20S100CFP Applications

* Switching diode
* SMPS
* DC/DC converter
* LED lighting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20S100CFP, STPS20S100CT. Please refer to the document for exact specifications by model.

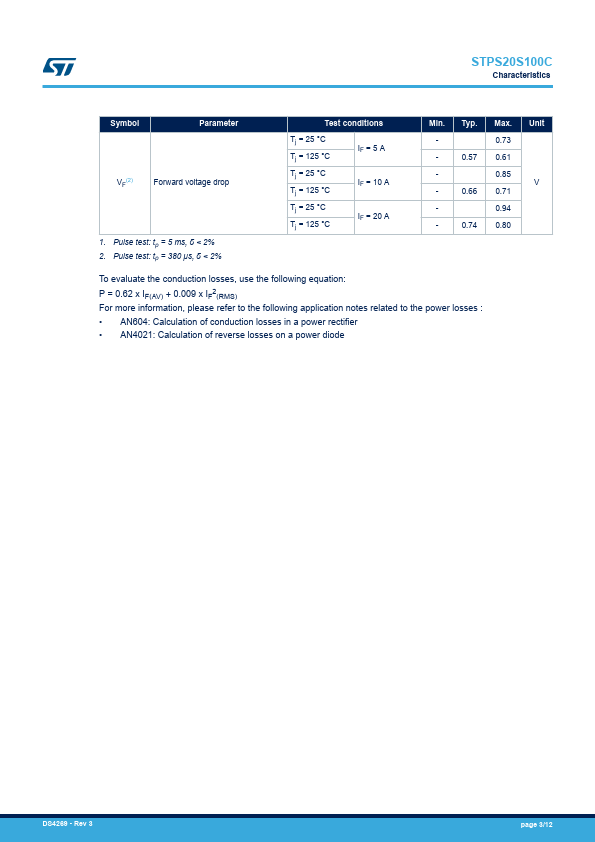

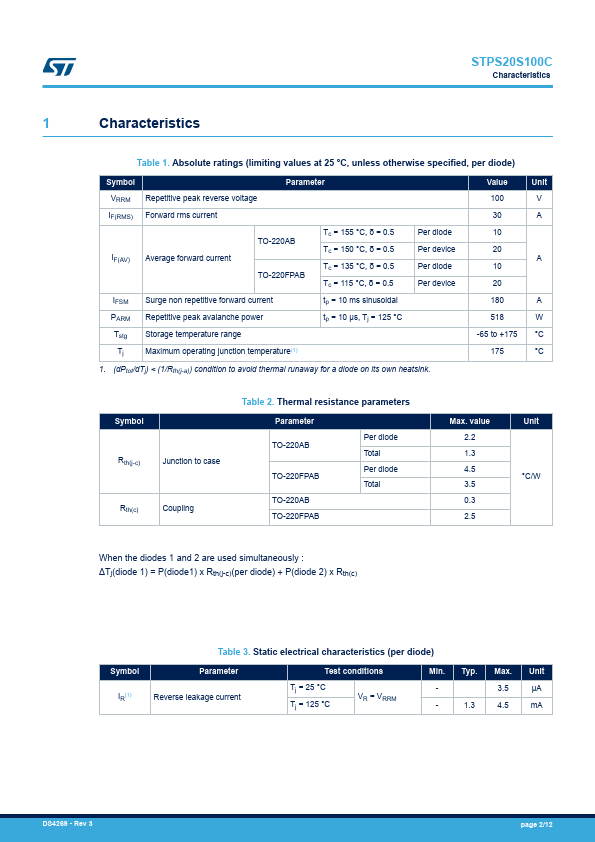

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20S100CFP, STPS20S100CT
Manufacturer
STMicroelectronics ↗
File Size
229.60 KB
Datasheet
STPS20S100CT-STMicroelectronics.pdf
Description
100V power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS20S100CFP, STPS20S100CT.
Please refer to the document for exact specifications by model.
