STPS30M80C Datasheet, Rectifier, STMicroelectronics

STPS30M80C Features

  • Rectifier
  • High junction temperature capability
  • Optimized trade-off between leakage current and forward voltage drop
  • Low leakage current
  • Avalanche capabilit

PDF File Details

Part number:

STPS30M80C

Manufacturer:

STMicroelectronics ↗

File Size:

115.56kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. This dual diode Schottky rectifier is suited for high frequency switch mode power supply. Packaged in TO-220AB, I2PAK, D2PAK and TO22

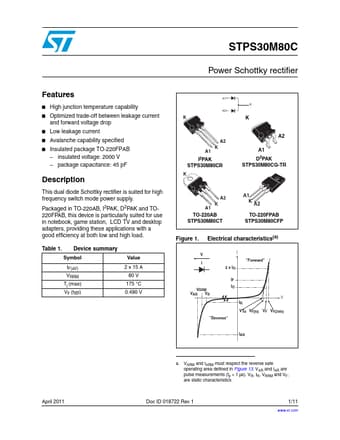

Datasheet Preview: STPS30M80C 📥 Download PDF (115.56kb)
Page 2 of STPS30M80C Page 3 of STPS30M80C

STPS30M80C Application

  • Applications with a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF (typ) Value 2 x 15 A 80 V 17
