STPS41H100C, STPS41H100CG 100V power Schottky rectifier

STPS41H100C Description

STPS41H100C Datasheet 100 V power Schottky rectifier A1 K A2 K K A2 A1 K TO-220AB K A2 A1 K I2PAK K A2 A1 D2PAK A2 A1 Product status link STP.
This dual center tab Schottky rectifier is suited for switch mode power supply and high frequency DC to DC converters.

STPS41H100C Features

* Negligible switching losses
* Low leakage current
* Good trade-off between leakage current and forward voltage drop
* Low thermal resistance
* Avalanche specification

STPS41H100C Applications

* Switching diode
* SMPS
* DC/DC converter
* LED lighting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS41H100C, STPS41H100CG. Please refer to the document for exact specifications by model.

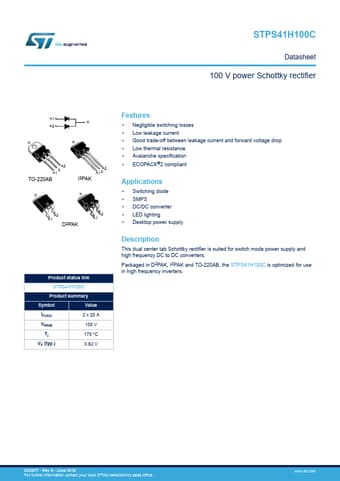

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS41H100C, STPS41H100CG
Manufacturer
STMicroelectronics ↗
File Size
328.76 KB
Datasheet
STPS41H100CG_STMicroelectronics.pdf
Description
100V power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS41H100C, STPS41H100CG.
Please refer to the document for exact specifications by model.
