STPS41H100CR

100V power Schottky rectifier

STMicroelectronics

STPS41H100CR Features

* Negligible switching losses

* Low leakage current

* Good trade-off between leakage current and forward voltage drop

* Low thermal resistance

* Avalanche specification

* ECOPACK®2 compliant Applications

* Switching diode

* SMPS

STPS41H100CR General Description

This dual center tab Schottky rectifier is suited for switch mode power supply and high frequency DC to DC converters. Packaged in D2PAK, I2PAK and TO-220AB, the STPS41H100C is optimized for use in high frequency inverters. DS2677 - Rev 6 - June 2018 For further information contact your local STMic.

STPS41H100CR Datasheet (328.76 KB)

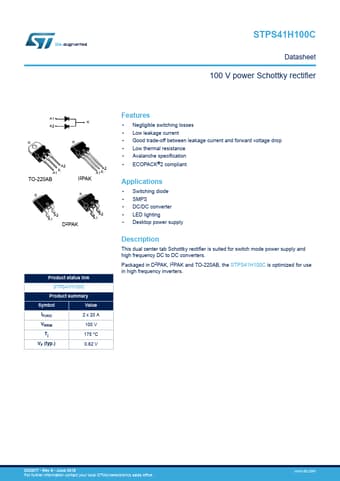

STPS41H100CR Datasheet Preview — Preview of STPS41H100CR PDF

Datasheet Details

Part number:

STPS41H100CR

Manufacturer:

STMicroelectronics ↗

File Size:

328.76 KB

Description:

100v power schottky rectifier.
STPS41H100C Datasheet 100 V power Schottky rectifier A1 K A2 K K A2 A1 K TO-220AB K A2 A1 K I2PAK K A2 A1 D2PAK A2 A1 Product status link STP.
