STS3P6F6

MOSFET

STMicroelectronics

STS3P6F6 Features

* 8 76 5 4 123 SO-8 Figure 1. Internal schematic diagram D (5,6,7,8) Order code STN3P6F6 VDSS 60 V RDS(on)max 0.16 Ω @ 10 V

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* High avalanche ruggedness

* Low gate drive power losses ID 3A

STS3P6F6 General Description

This device is a P-channel Power MOSFET developed using the 6th generation of STripFET™ technology, with a new gate structure. The resulting Power MOSFET exhibits the lowest RDS(on) in all packages. G (4) S (1,2,3) Order code STS3P6F6 Table 1. Device summary Marking Package 3K60 SO-8 Packag.

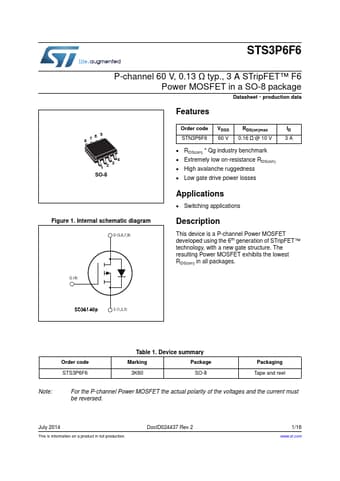

STS3P6F6 Datasheet (543.26 KB)

STS3P6F6 Datasheet Preview — Preview of STS3P6F6 PDF

Datasheet Details

Part number:

STS3P6F6

Manufacturer:

STMicroelectronics ↗

File Size:

543.26 KB

Description:

Mosfet.
