STSLVDSP27

8-bit low voltage serializer

STSLVDSP27 Features

* Sub-low voltage differential signaling: VOD = 150mV with RT = 100Ω, CL = 10pF Clock range: 4 to 27 MHz in parallel mode, BYP = Gnd Operative frequency serial mode, BYP = VDD; DIN0 to DOUT, CLKIN to CLKOUT, fOPR = 1 to 208 MHz max Embedded DPLL requires no external components Outpu

STSLVDSP27 General Description

The STSLVDSP27 is an 8:1 bit serializer with embedded DPLL. The dual differential line drivers implement the electrical characteristics of sub-low voltage differential signaling (subLVDS), bringing out the serialized data and related synchronous clock signal. The STSLVDSP27 serializer IC is provide.

STSLVDSP27 Datasheet (374.79 KB)

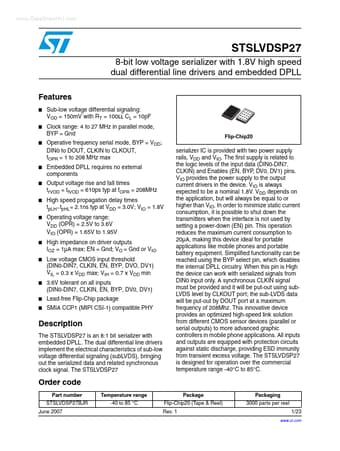

Preview of STSLVDSP27 PDF

Datasheet Details

Part number:

STSLVDSP27

Manufacturer:

STMicroelectronics ↗

File Size:

374.79 KB

Description:

8-bit low voltage serializer.
