STTH1L06A, STTH1L06 - TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

STMicroelectronics

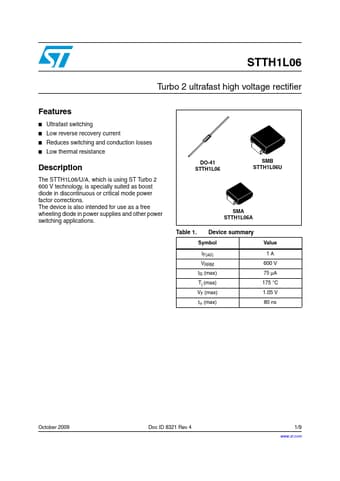

STTH1L06A Datasheet Preview — This datasheet PDF includes multiple part numbers: STTH1L06A, STTH1L06. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STTH1L06A, STTH1L06
Manufacturer	STMicroelectronics ↗
File Size	108.91 KB
Description	TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
Datasheet	STTH1L06_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STTH1L06A, STTH1L06. Please refer to the document for exact specifications by model.

STTH1L06A Product details

Description

The STTH1L06/U/A, which is using ST Turbo 2 600 V technology, is specially suited as boost diode in discontinuous or critical mode power factor corrections.

Features

Ultrafast switching.
Low reverse recovery current.
Reduces switching and conduction losses.
Low thermal resistance.
