STTH6003

High frequency secondary rectifier

STTH6003 Features

* Combines highest recovery and voltage performance

* Ultrafast, soft and noise-free recovery

* Low inductance and low capacitance allow simplified layout Description Dual rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged in TO-247, this devi

STTH6003 General Description

Dual rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged in TO-247, this device is intended for use in low voltage, high frequency inverters, free wheeling operation, welding equipment and telecom power supplies. Table 1: Device summary Symbol Value IF(.

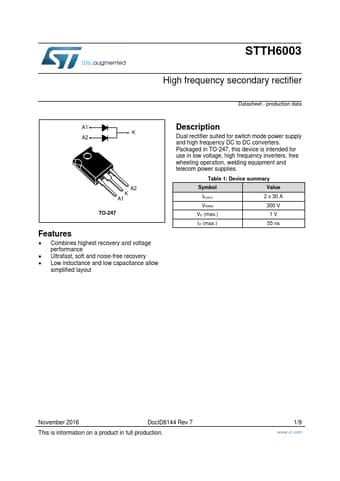

STTH6003 Datasheet (277.40 KB)

Preview of STTH6003 PDF

Datasheet Details

Part number:

STTH6003

Manufacturer:

STMicroelectronics ↗

File Size:

277.40 KB

Description:

High frequency secondary rectifier.
