STTH6006TV1 Datasheet - STMicroelectronics

Turbo 2 ultrafast - high voltage rectifier

STTH6006TV1 General Description

The STTH6006TV1 uses ST Turbo2 600V technology. This device is specially suited for use in switching power supplies, and industrial applications such as rectification and PFC boost diode. Order codes Part Number STTH6006TV1 Marking STTH6006TV1 Table 1. Absolute ratings (limiting values per diode .

STTH6006TV1 Datasheet (98.63 KB)

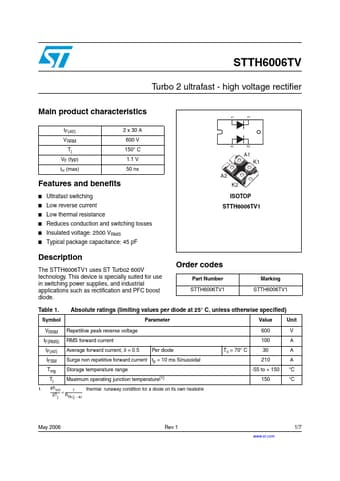

STTH6006TV1 Datasheet Preview — Preview of STTH6006TV1 PDF

Datasheet Details

Part number:

STTH6006TV1

Manufacturer:

STMicroelectronics ↗

File Size:

98.63 KB

Description:

Turbo 2 ultrafast - high voltage rectifier.
STTH6006TV Turbo 2 ultrafast - high voltage rectifier Main product characteristics A1 K1 IF(AV) VRRM Tj VF (typ) trr (max) 2 x 30 A 600 V 150° C .
