STTH6004W

Ultrafast high voltage rectifier

STTH6004W Features

* 60 A 400 V 175 °C 0.83 V 50 ns K A DO-247 STTH6004W Ultrafast switching Low reverse current Low thermal resistance Reduces switching & conduction losses Description The STTH6004W uses ST 400V technology and is specially suited for use in switching power supplies, welding

STTH6004W General Description

The STTH6004W uses ST 400V technology and is specially suited for use in switching power supplies, welding equipment and industrial applications, as an output rectification diode. Table 2: Order codes Part number STTH6004W Marking STTH6004W Table 3: Absolute ratings (limiting values) Symbol VRRM I.

STTH6004W Datasheet (110.42 KB)

Preview of STTH6004W PDF

Datasheet Details

Part number:

STTH6004W

Manufacturer:

STMicroelectronics ↗

File Size:

110.42 KB

Description:

Ultrafast high voltage rectifier.

📁 Related Datasheet

STTH6002C - High efficiency ultrafast diode (ST Microelectronics)
Main product characteristics IF(AV) VRRM Tj (max) VF (typ) trr (typ) 2 x 30 A 200 V 175° C 0.75 V 22 ns Features and benefits ■ Suited for SMPS ■ L.

STTH6003 - High frequency secondary rectifier (STMicroelectronics)
STTH6003 High frequency secondary rectifier Datasheet - production data A1 K A2 A2 K A1 TO-247 Features  Combines highest recovery and voltage per.

STTH6006CW - HIGH FREQUENCY SECONDARY RECTIFIER (STMicroelectronics)
® STTH6003TV/CW HIGH FREQUENCY SECONDARY RECTIFIER MAJOR PRODUCT CHARACTERISTICS IF(AV) VRRM VF (max) trr (max) FEATURES AND BENEFITS COMBINES HIGHE.

STTH6006TV - Turbo 2 ultrafast - high voltage rectifier (STMicroelectronics)
STTH6006TV Turbo 2 ultrafast - high voltage rectifier Main product characteristics A1 K1 IF(AV) VRRM Tj VF (typ) trr (max) 2 x 30 A 600 V 150° C .

STTH6006TV1 - Turbo 2 ultrafast - high voltage rectifier (STMicroelectronics)
STTH6006TV Turbo 2 ultrafast - high voltage rectifier Main product characteristics A1 K1 IF(AV) VRRM Tj VF (typ) trr (max) 2 x 30 A 600 V 150° C .

STTH6006W - Turbo 2 ultrafast / high voltage rectifier (STMicroelectronics)
STTH6006W Turbo 2 ultrafast - high voltage rectifier Table 1. Main product characteristics IF(AV) VRRM Tj VF (typ) trr (max) 60 A 600 V 175° C 1.1 V 6.

STTH6012 - 60A ultrafast high voltage diode (STMicroelectronics)
K A K DO-247 K A K A DO-247 LL K Product status link STTH6012 Product summary IF(AV) 60 A VRRM 1200 V VF(typ.) 1.30 V trr(typ.) 50 ns .

STTH60400HR - Rad-Hard 60A - 400V ultrafast rectifier (STMicroelectronics)
STTH60400HR Datasheet Rad-Hard 60 A - 400 V ultrafast rectifier Product status link STTH60400HR Product summary IF(AV) VRRM Tj(max) VF(max) at 60 A .

TAGS

STTH6004W Ultrafast high voltage rectifier STMicroelectronics

Image Gallery

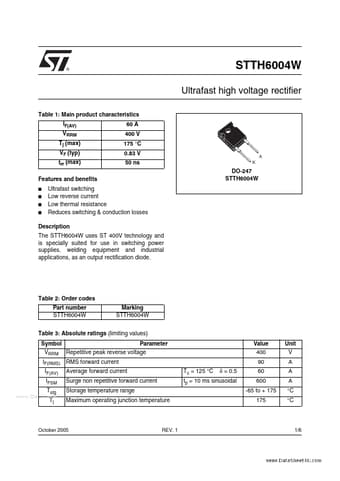

STTH6004W Datasheet Preview Page 2 STTH6004W Datasheet Preview Page 3
