STTH6002C

High efficiency ultrafast diode

STTH6002C Features

* Suited for SMPS

* Low losses

* Low forward and reverse recovery times

* High surge current capability

* High junction temperature Description Dual center tab rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in TO-247 and TOP3I, t

STTH6002C General Description

Dual center tab rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in TO-247 and TOP3I, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection STTH6002C High efficiency ultrafast diode A1 K A2 A2.

STTH6002C Datasheet (106.29 KB)

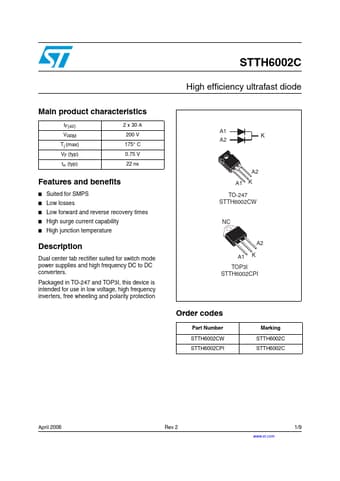

Preview of STTH6002C PDF

Datasheet Details

Part number:

STTH6002C

Manufacturer:

STMicroelectronics ↗

File Size:

106.29 KB

Description:

High efficiency ultrafast diode.
