STTH6012

60A ultrafast high voltage diode

STTH6012 Features

* Ultrafast, soft recovery

* Low leakage current

* Very low conduction and switching losses

* High frequency and/or high pulsed current operation

* High reverse voltage capability

* High junction temperature capability

* ECOPACK2 compliant Appl

STTH6012 General Description

The high-quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics, and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long-term reliability. Such demanding applications include industrial po.

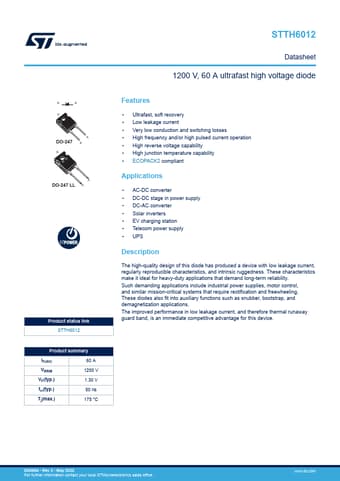

STTH6012 Datasheet (440.26 KB)

Preview of STTH6012 PDF

Datasheet Details

Part number:

STTH6012

Manufacturer:

STMicroelectronics ↗

File Size:

440.26 KB

Description:

60a ultrafast high voltage diode.
K A K DO-247 K A K A DO-247 LL K Product status link STTH6012 Product summary IF(AV) 60 A VRRM 1200 V VF(typ.) 1.30 V trr(typ.) 50 ns .
