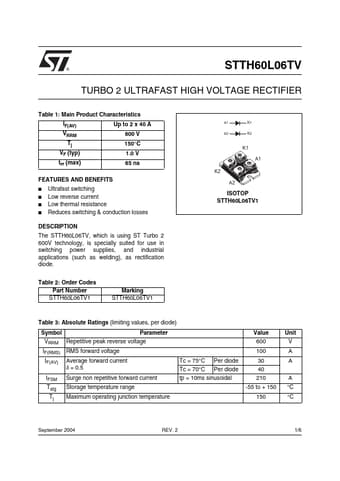

STTH60L06TV Datasheet, Rectifier, ST Microelectronics

✔ STTH60L06TV Features

Up to 2 x 40 A 600 V 150°C 1.0 V 65 ns K2 A1 A2 K1 K2 K1 A1 A2 Ultrafast switching Low reverse current Low thermal resistance Reduces switching & conduction

✔ STTH60L06TV Application

(such as welding), as rectification diode. Table 2: Order Codes Part Number STTH60L06TV1 Marking STTH60L06T

PDF File Details

ST Microelectronics manufacturer logo and representative part image

Part number:

STTH60L06TV

Manufacturer:

STMicroelectronics ↗

File Size:

121.50kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH60L06TV, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, and industrial a

📥 Download PDF (121.50kb)
