STTH60400HR

Rad-Hard 60A - 400V ultrafast rectifier

STMicroelectronics

STTH60400HR Features

* Forward current: 60 A

* Repetitive peak reverse voltage: 400 V

* Low forward voltage drop: 1.15 V max. at 60 A and 125 °C

* Negligible switching losses

* High surge current capability: 500 A

* Ceramic hermetic package

* Tested radiation perfo

STTH60400HR General Description

The STTH60400HR is a single monolithic rectifier assembled in an SMD1 hermetic package and tested in total dose at high dose rate and in single event effect to be used in Rad-Hard applications. Its full planar technology allows superior performances and high reliability up to 175 °C junction tempera.

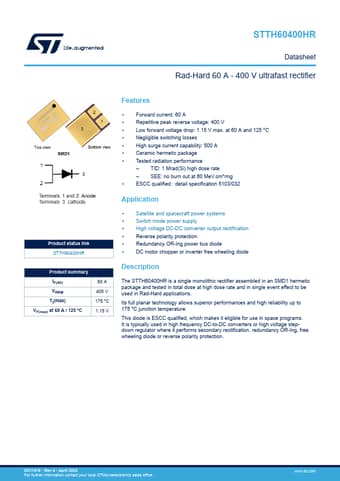

STTH60400HR Datasheet (865.24 KB)

STTH60400HR Datasheet Preview — Preview of STTH60400HR PDF

Datasheet Details

Part number:

STTH60400HR

Manufacturer:

STMicroelectronics ↗

File Size:

865.24 KB

Description:

Rad-hard 60a - 400v ultrafast rectifier.
STTH60400HR Datasheet Rad-Hard 60 A - 400 V ultrafast rectifier Product status link STTH60400HR Product summary IF(AV) VRRM Tj(max) VF(max) at 60 A .
