STTH60AC06C Datasheet, Rectifier, STMicroelectronics

STTH60AC06C Features

• Rectifier
• Ultrafast switching
• Low reverse recovery current
• Reduces switching and conduction losses
• Low thermal resistance
• Insulated package TO-3P

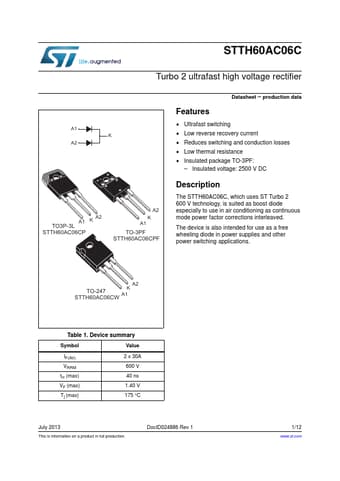

PDF File Details

Part number:

STTH60AC06C

Manufacturer:

STMicroelectronics ↗

File Size:

254.10kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH60AC06C, which uses ST Turbo 2 600 V technology, is suited as boost diode especially to use in air conditioning as continuous

STTH60AC06C Application

• Applications A2 TO-247 STTH60AC06CW K A1 Table 1. Device summary Symbol Value IF(AV) VRRM trr (max) VF (max) Tj (max) 2 x 30A 600 V 40 ns 1
