STTH60R04

Ultrafast recovery diode

STTH60R04 Features

* Very low switching losses

* High frequency and/or high pulsed current operation

* High junction temperature A K DO-247 STTH60R04W Description The STTH60R04 series uses ST's new 400 V planar Pt doping technology. The STTH60R04 is specially suited for switching mode base drive and tra

STTH60R04 General Description

The STTH60R04 series uses ST's new 400 V planar Pt doping technology. The STTH60R04 is specially suited for switching mode base drive and transistor circuits. Available in a through-the-hole package, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarit.

STTH60R04 Datasheet (89.20 KB)

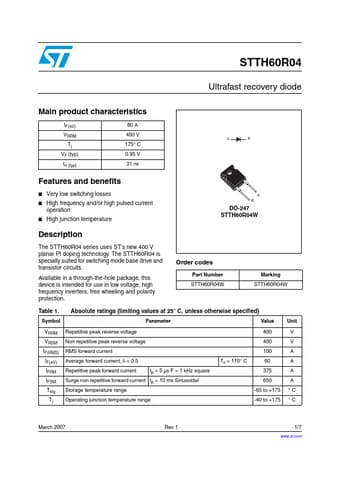

Preview of STTH60R04 PDF

Datasheet Details

Part number:

STTH60R04

Manufacturer:

STMicroelectronics ↗

File Size:

89.20 KB

Description:

Ultrafast recovery diode.
