STTH60RQ06CWL

ultrafast high voltage rectifier

STTH60RQ06CWL Features

* High junction temperature capability

* Ultrafast with soft recovery behavior

* Low reverse current

* Low thermal resistance

* Reduced switching and conduction losses

* ECOPACK2 compliant component Applications

* Solar boost diode

* Ou

STTH60RQ06CWL General Description

The STTH60RQ06CWL has been developed for applications requiring a high-voltage (HV) capability such as in secondary rectification in HV LLC full bridge topology or in high voltage boost function. It is ideal for switching power supplies and industrial applications, as rectification function, or even.

STTH60RQ06CWL Datasheet (373.35 KB)

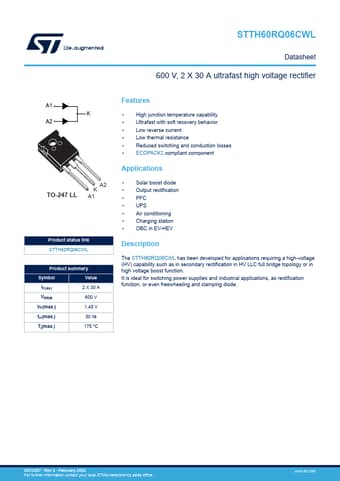

Preview of STTH60RQ06CWL PDF

Datasheet Details

Part number:

STTH60RQ06CWL

Manufacturer:

STMicroelectronics ↗

File Size:

373.35 KB

Description:

Ultrafast high voltage rectifier.
STTH60RQ06CWL Datasheet 600 V, 2 X 30 A ultrafast high voltage rectifier A1 K A2 TO-247 LL A2 K A1 Product status link STTH60RQ06CWL Product summ.
