STTH60SW03C Turbo 2 ultrafast high voltage rectifier

STTH60SW03C Description

A1 K A2 A2 K A1 TO-247 .
The STTH60SW03C uses ST Turbo 2 300 V technology.

STTH60SW03C Features

* Ultrafast switching
* Low reverse recovery current
* Reduces switching losses
* Low thermal resistance
* ECOPACK®2 compliant component STTH60SW03C Turbo 2 ultrafast high voltage rectifier Datasheet

STTH60SW03C Applications

* Table 1. Device summary Symbol Value IF(AV) VRRM trr (typ) VF (typ) Tj (max) 2 x 30A 300 V 20 ns 1.05 V 175 °C January 2015 This is information on a product in full production. DocID026582 Rev 1 1/9 www. st. com 9 Characteristics 1 Characteristics STTH60SW03C Table 2. Absolute ratings (li

📥 Download Datasheet

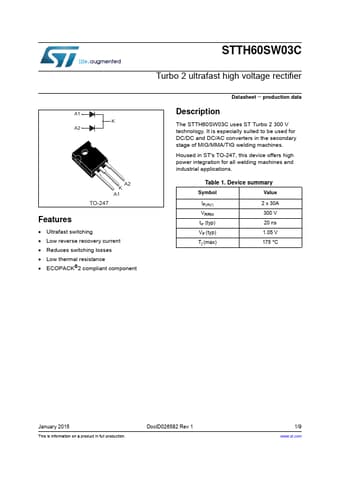

Preview of STTH60SW03C PDF
datasheet Preview Page 2 datasheet Preview Page 3
