STTH61W04S Datasheet, Rectifier, STMicroelectronics

STTH61W04S Features

• Rectifier
• Ultrafast switching
• Low reverse recovery current
• Low thermal resistance
• Reduces switching losses
• ECOPACK®2 compliant component

PDF File Details

Part number:

STTH61W04S

Manufacturer:

STMicroelectronics ↗

File Size:

77.68kb

Download:

📄 Datasheet

Description:

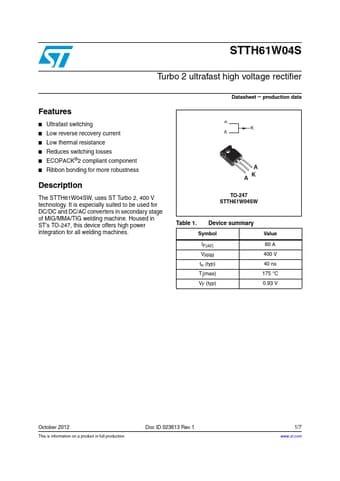

Turbo 2 ultrafast high voltage rectifier. The STTH61W04SW, uses ST Turbo 2, 400 V technology. It is especially suited to be used for DC/DC and DC/AC converters in secondary st
