STU3N45K3 Datasheet - STMicroelectronics

N-CHANNEL POWER MOSFET

STU3N45K3 Features

* TAB IPAK 3 2 1 Figure 1. Internal schematic diagram D(2, TAB) G(1) S(3) AM01476v1 Order code STU3N45K3 VDSS 450 V RDS(on) max

STU3N45K3 General Description

This SuperMESH3™ Power MOSFET is the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized vertical structure. This device boasts an extremely low onresistance, superior dynamic performance and high avalanche capability, rendering it suitable for .

STU3N45K3 Datasheet (812.92 KB)

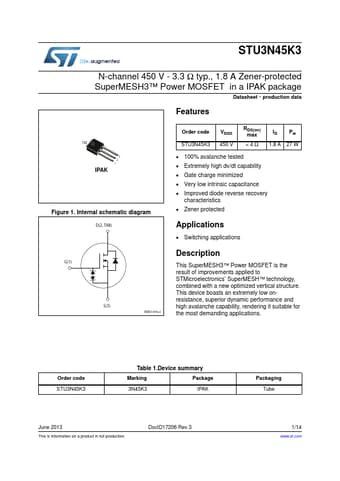

STU3N45K3 Datasheet Preview — Preview of STU3N45K3 PDF

Datasheet Details

Part number:

STU3N45K3

Manufacturer:

STMicroelectronics ↗

File Size:

812.92 KB

Description:

N-channel power mosfet.
