STU3N62K3 N-channel Power MOSFET

The new SuperMESH3™ series is obtained through the combination of a further fine tuning of ST's well established strip-based PowerMESH™ layout with a new optimization of the vertical structure. In addition to reducing on-resistance significantly versus previous generation, special attention has been.

STU3N62K3 Features

* www.DataSheet4U.com Type VDSS 620 V 620 V 620 V 620 V 620 V RDS(on) max < 2.5 Ω < 2.5 Ω < 2.5 Ω < 2.5 Ω < 2.5 Ω ID 2.7 A 2.7 A 2.7 A(1) 2.7 A 2.7 A Pw 1 3 2 1 3 STB3N62K3 STD3N62K3 STF3N62K3 STP3N62K3 STU3N62K3 45 W 45 W 20 W 45 W 45 W IPAK 3 1 DPAK D²PAK 3 1 2 1 2 3 1. Limited by packag

STU3N62K3_STMicroelectronics.pdf

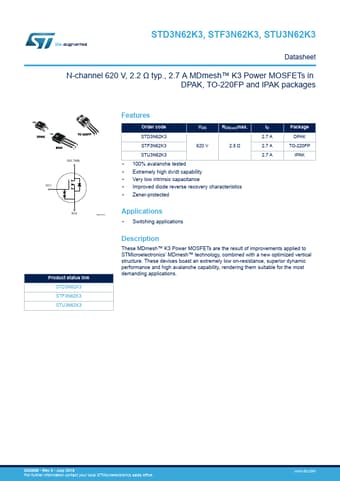

STU3N62K3 Datasheet Preview — Preview of STU3N62K3 PDF

Datasheet Details

Part number:

STU3N62K3

Manufacturer:

STMicroelectronics ↗

File Size:

694.60 KB

Description:

N-channel power mosfet.
