STU3N80K5 N-channel Power MOSFET

These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order .

STU3N80K5 Features

* Order code VDS STD3N80K5 STF3N80K5 STP3N80K5 STU3N80K5 800 V RDS(on) max. 3.5 Ω ID 2.5 A PTOT 60 W 20 W 60 W

* Industry’s lowest RDS(on) x area

* Industry’s best FoM (figure of merit)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Swi

STU3N80K5-STMicroelectronics.pdf

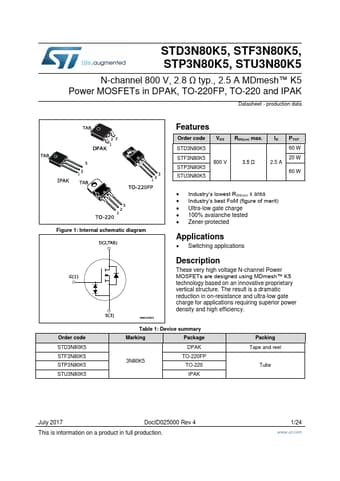

STU3N80K5 Datasheet Preview — Preview of STU3N80K5 PDF

Datasheet Details

Part number:

STU3N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

854.50 KB

Description:

N-channel power mosfet.
