STW77N65M5 - N-channel Power MOSFET

STMicroelectronics

The STW77N65M5 by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STW77N65M5 N-channel Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STW77N65M5** N-channel Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STW77N65M5
Manufacturer	STMicroelectronics
File Size	967.55 KB
Description	N-channel Power MOSFET
Datasheet	STW77N65M5-STMicroelectronics.pdf

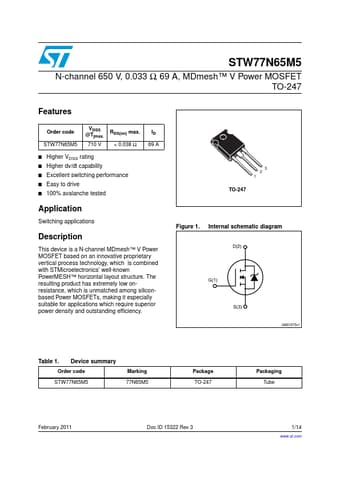

Additional preview pages of the STW77N65M5 datasheet.

STW77N65M5 Product details

Description

This device is a N-channel MDmesh™ V Power MOSFET based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

Features

Order code STW77N65M5 VDSS @Tjmax. 710 V RDS(on) max. < 0.038 Ω ID 69 A.
Higher VDSS rating.
Higher dv/dt capability.
Excellent switching performance.
Easy to drive.
100% avalanche tested.
