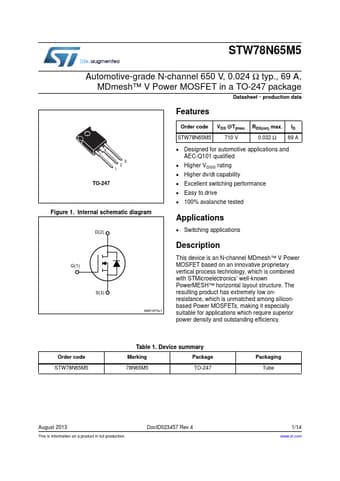

STW78N65M5 Datasheet (STMicroelectronics)

STW78N65M5, N-CHANNEL MOSFET

This device is an N-channel MDmesh™ V Power MOSFET based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

The resulting product has extremely low onresistance, which is unmatched among siliconbased

STW78N65M5 Features

* 3 2 1 TO-247 Figure 1. Internal schematic diagram '

* 6 $0Y Order code VDS @Tjmax. RDS(on) max. ID STW78N65M5 710 V 0.032 Ω 69 A

* Designed for automotive applications and AEC-Q101 qualified

* Higher VDSS rating

* Higher dv/dt capability

* E
