STW8NK80Z, N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS

STP8NK80Z - STP8NK80ZFP STW8NK80Z N-channel 800V - 1.3Ω - 6.2A - TO-220 /TO-220FP/TO-247 Zener-protected SuperMESH™ Power MOSFET .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

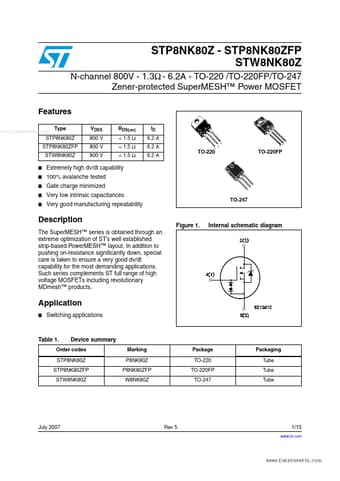

datasheet Preview Page 1 from Datasheet4u.com

STW8NK80Z_STMicroelectronics.pdf

STW8NK80Z Datasheet Preview — Preview of STW8NK80Z PDF

Datasheet Details

Part number:

STW8NK80Z

Manufacturer:

STMicroelectronics ↗

File Size:

456.94 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS

Features

* www. DataSheet4U. com Type VDSS 800 V 800 V 800 V RDS(on) < 1.5 Ω < 1.5 Ω < 1.5 Ω ID 6.2 A 6.2 A 6.2 A TO-220 1 2 3 STP8NK80Z STP8NK80ZFP STW8NK80Z
* TO-220FP Extremely high dv/dt capability 100% avalanche tested Gate charge minimized Very low intrinsic capacitances

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Figure 1. Internal schematic diagram Application
* Switching applications Table 1. Device summary Marking P8NK80Z P8NK80ZFP W8NK80Z Package TO-220 TO-220FP TO-247 Packaging Tube Tube Tu
