STWBC86 Datasheet, Transmitter, STMicroelectronics

STWBC86 Features

  • Transmitter
  • WPC Qi 1.2.4 compatible Power Class 0 BPP
  • Power Tx reference design based on A11a topology
  • Up to 5W output power transfer on the receiver side
  • Wi

PDF File Details

Part number:

STWBC86

Manufacturer:

STMicroelectronics ↗

File Size:

1.87MB

Download:

📄 Datasheet

Description:

Qi compatible wireless power transmitter. The STWBC86 is a highly integrated monolithic wireless power transmitter solution suitable for applications up to 5W. This solution r

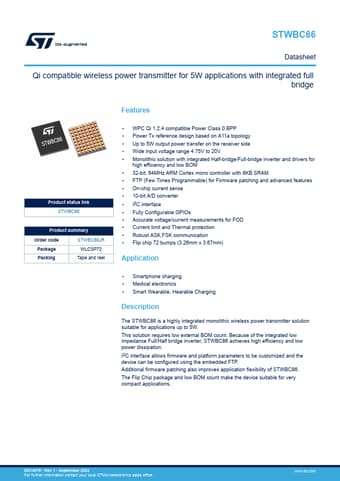

Datasheet Preview: STWBC86 📥 Download PDF (1.87MB)
Page 2 of STWBC86 Page 3 of STWBC86

STWBC86 Application

  • Applications with integrated full bridge Product status link STWBC86 Product summary Order code STWBC86JR Package WLCSP72 Packing Tape and r
