STWLC04 Datasheet - STMicroelectronics

1 W optimized wireless power receiver

STWLC04 General Description

* 1 W output power * Qi 1.1 wireless standard communication protocol based * Integrated high efficiency synchronous rectifier * 800 kHz programmable step-down converter with input current and input voltage regulation loop The STWLC04 is an integrated wireless power receiver suitabl.

STWLC04 Datasheet (1.19 MB)

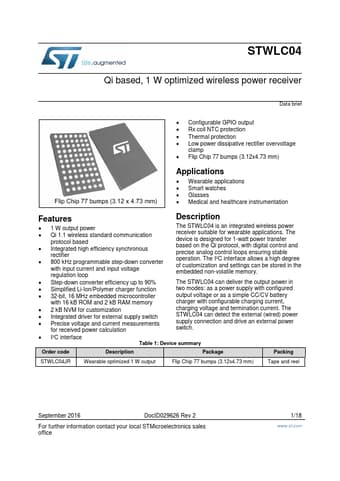

STWLC04 Datasheet Preview — Preview of STWLC04 PDF

Datasheet Details

Part number:

STWLC04

Manufacturer:

STMicroelectronics ↗

File Size:

1.19 MB

Description:

1 w optimized wireless power receiver.
STWLC04 Qi based, 1 W optimized wireless power receiver Data brief Configurable GPIO output Rx coil NTC protection Thermal protec.
