STWLC98 - Qi-compliant inductive wireless power receiver

STMicroelectronics

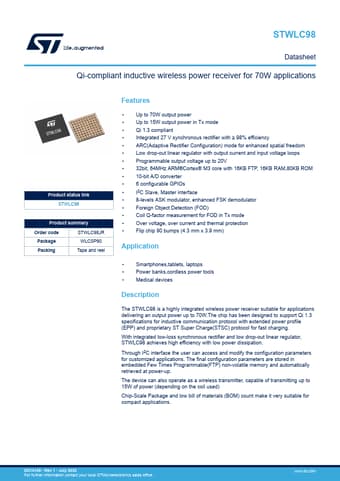

STWLC98 Datasheet Preview — Preview of STWLC98 PDF

Datasheet Details

Part number	STWLC98
Manufacturer	STMicroelectronics ↗
File Size	3.34 MB
Description	Qi-compliant inductive wireless power receiver
Datasheet	STWLC98-STMicroelectronics.pdf

STWLC98 Product details

Description

The STWLC98 is a highly integrated wireless power receiver suitable for applications delivering an output power up to 70W.The chip has been designed to support Qi 1.3 specifications for inductive communication protocol with extended power profile (EPP) and proprietary ST Super Charge(STSC) protocol for fast charging.

Features

Up to 70W output power.
Up to 15W output power in Tx mode.
Qi 1.3 compliant.
Integrated 27 V synchronous rectifier with ≥ 98% efficiency.
ARC(Adaptive Rectifier Configuration) mode for enhanced spatial freedom.
Low drop-out linear regulator with output current and input voltage loops.
Programmable output voltage up to 20V.
32bit, 64MHz ARM®Cortex® M3 core with 16KB FTP, 16KB RAM,80KB ROM.
10-bit A/D converter.
