KM732V596L, KM732V596A 32Kx32-Bit Synchronous Pipelined Burst SRAM

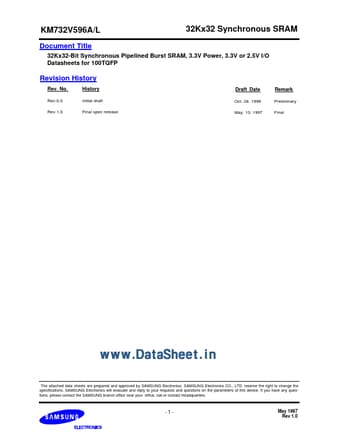

📥 Download Datasheet  Datasheet Preview Page 1

Description

PRELIMINARY KM732V596A/L Document Title 32Kx32-Bit Synchronous Pipelined Burst SRAM, 3.3V Power, 3.3V or 2.5V I/O Datasheets for 100TQFP 32Kx32 Synch.
The KM732V596A/L is a 1,048,576 bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC b.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KM732V596L, KM732V596A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
KM732V596L, KM732V596A
Manufacturer
Samsung Semiconductor
File Size
438.33 KB
Datasheet
KM732V596A_SamsungSemiconductor.pdf
Description
32Kx32-Bit Synchronous Pipelined Burst SRAM
Note
This datasheet PDF includes multiple part numbers: KM732V596L, KM732V596A.
Please refer to the document for exact specifications by model.

Features

* Synchronous Operation. 2 Stage Pipelined operation with 4 Burst. On-Chip Address Counter. Write Self-Timed Cycle. On-Chi

Applications

* GW, BW, LBO, ZZ. Write cycles are internally self-timed and synchronous. Full bus-width write is done by GW, and each byte write is performed by the combination of WEx and BW when GW is high. And with CS1 high, ADSP is blocked to control signals. Burst cycle can be initiated with either the address
